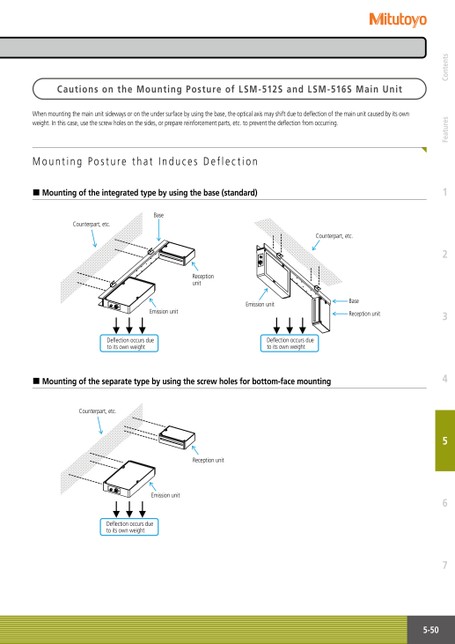

CautionsontheMountingPostureofLSM-512SandLSM-516SMainUnitWhenmountingthemainunitsidewaysorontheundersurfacebyusingthebase,theopticalaxismayshiftduetodeflectionofthemainunitcausedbyitsownweight.Inthiscase,usethescrewholesonthesides,orpreparereinforcementparts,etc.topreventthedeflectionfromoccurring.MountingPosturethatInducesDeflection■Mountingoftheintegratedtypebyusingthebase(standard)Counterpart,etc.BaseCounterpart,etc.ReceptionunitEmissionunitEmissionunitBaseReceptionunitDeflectionoccursduetoitsownweightDeflectionoccursduetoitsownweight■Mountingoftheseparatetypebyusingthescrewholesforbottom-facemountingCounterpart,etc.ReceptionunitEmissionunitDeflectionoccursduetoitsownweight5-50
| <
|
> |
>>
